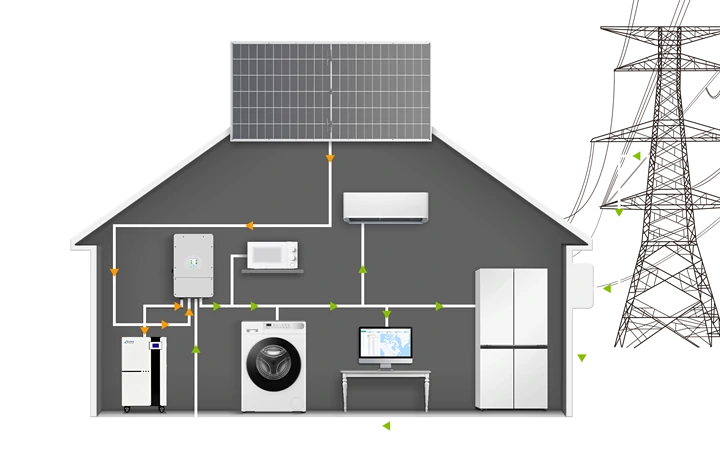

LVFU Home Energy Storage Battery Technical Support
1.1 LiFePO4 battery communication interface basics
RS485 Serial Communication
CAN Bus Interface
Ethernet (TCP/IP)
- Transmission distance: up to 1200 meters
- Technical features: Differential signal transmission, extremely strong anti-interference capability.
- Bus characteristics: Half-duplex communication, supports 32 nodes. Network topology.
- Transmission distance: Up to 1000 meters (high-speed mode)
- Technical features: Multi-master structure, extremely high real-time data transmission performance
- Fault tolerance mechanism: Automatic retransmission of erroneous frames, strong resistance to electromagnetic interference
- Transmission Distance: 100 meters (fiber optic cables can extend to several kilometers)
- Technical Features: 100 Mbps/Gigabit bandwidth, high data throughput
- Network Architecture: Full-duplex, supports star topology and WAN connections
Typical applications: parallel communication of battery clusters, long-distance industrial cabling, and data acquisition of photovoltaic strings.
Typical applications: Inverter-BMS interaction, vehicle control systems, real-time command control.
Typical applications: EMS energy management system, cloud data upload, remote operation and maintenance monitoring

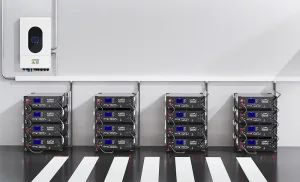

1.2 Lithium battery parallel operation principle and configuration
1.2.1 Parallel Operation Core Prerequisites
Consistency Requirement: Same Model, Same Capacity
Mixing batteries of different capacities or new and old batteries is strictly prohibited. Doing so will create internal circulating current, accelerate battery aging, and trigger equipment protection.
Voltage Balance: Voltage Difference < 2V and allowed to stand for 15 minutes
The voltage of each individual cell must be measured before parallel operation. Excessive voltage difference will cause a sudden surge in current if parallel operation is initiated directly. Allow the circuit to stand after wiring to ensure balance.
Master-Slave Architecture: 1 Master, Multiple Slaves (Addresses 1-15)
Only one master (address 1) can be configured, with the rest as slaves (addresses 2-15). Duplicate addresses will cause communication interruption or system crash.
1.2.2 Standardized Wiring and Communication Logic
Power Cables: Direct parallel connection of positive and negative terminals.
All devices must be connected with their positive terminals connected to positive and negative terminals to negative, securely crimped with copper lugs. Series connection is strictly prohibited to avoid voltage superposition damage.
Communication Link: RS485 daisy-chain connection.
Use shielded twisted-pair cable, strictly adhering to the daisy-chain connection method. Both ends must be connected to 1200Ω terminating resistors for interference suppression.
Address Setting: Configured via physical DIP switches.
In the power-off state, a unique ID is set via DIP switches. The master device is fixed at address 1, and slave devices increment sequentially, without repetition.
1.3 Preliminary diagnosis of common faults in home energy storage lithium batteries
Temperature jumps/abnormal fluctuations
Possible Causes: Loose NTC sensor, poor contact, or probe detachment
Initial Troubleshooting Suggestions: Check the NTC connector for tightness and re-insert it firmly; if the probe is damaged, replace the sensor.
The voltage of a single battery cell is less than 0V
Possible Causes:This indicates that the corresponding cell sampling line is loose, detached, or has a poor solder joint.
Initial Troubleshooting Suggestions: Open the battery box and tighten the bolts on the corresponding sampling line to ensure good contact between the metal wire and the cell electrode.
Total voltage too low, equipment cannot start
Possible Causes: Cell pack over-discharged, total voltage below 44V protection threshold.
Initial Troubleshooting Suggestions: Use low current (0.1C rate) charging to activate; once total voltage rises above protection level, switch to normal charging.
No display or black screen
Possible Causes: The display cable connector is loose, oxidized, or the screen is damaged.
Initial Troubleshooting Suggestions: Turn off the power, reconnect the display cable, and clean the oxide layer on the connector with alcohol; if the screen is still black, replace the screen.
The protection board communicates normally but the device cannot be powered on
Possible Causes: This could be due to cell k-voltage protection triggering, or a faulty power button/switch.
Initial Troubleshooting Suggestions: Measure the total voltage to confirm the status, then press the RST button on the protection board to reset. If the button is malfunctioning, replace the switch assembly.
Excessive voltage difference between cells (>100mV)
Possible Causes: Long-term storage leading to differences in micro-discharge, or inconsistency in the performance of individual cells
Initial Troubleshooting Suggestions: Use a professional lithium battery equalizer to perform active cell balancing, or perform a complete full charge-discharge cycle calibration.
The system reports a "short circuit fault" alarm
Possible Causes: This indicates a genuine short circuit in the external load, or that the positive and negative terminals have been reversed, triggering hardware protection.
Initial Troubleshooting Suggestions: Immediately disconnect the power and remove the external load to check for the short circuit. If the positive and negative terminals are reversed, do not attempt to power on the device; it must be returned for repair.
The remaining capacity (SOC) is inaccurate
Possible Causes: The BMS’s SOC algorithm is not calibrated, or the battery has been in a shallow charge/discharge state for a long time.
Initial Troubleshooting Suggestions: Perform a complete charge/discharge cycle–fully charge the battery to the cutoff voltage, then discharge it to the protection voltage to complete capacity learning.
LVFU Home Energy Storage Battery Technical Support
1.1 LiFePO4 battery communication interface basics
RS485 Communication
- Transmission distance: up to 1200 meters
- Technical features: Differential signal transmission, extremely strong anti-interference capability.
- Bus characteristics: Half-duplex communication, supports 32 nodes. Network topology.
Typical applications: parallel communication of battery clusters, long-distance industrial cabling, and data acquisition of photovoltaic strings.
CAN Bus Interface
- Transmission distance: Up to 1000 meters (high-speed mode)
- Technical features: Multi-master structure, extremely high real-time data transmission performance
- Fault tolerance mechanism: Automatic retransmission of erroneous frames, strong resistance to electromagnetic interference
Typical applications: Inverter-BMS interaction, vehicle control systems, real-time command control.
Ethernet (TCP/IP)
- Transmission Distance: 100 meters (fiber optic cables can extend to several kilometers)
- Technical Features: 100 Mbps/Gigabit bandwidth, high data throughput
- Network Architecture: Full-duplex, supports star topology and WAN connections
Typical applications: EMS energy management system, cloud data upload, remote operation and maintenance monitoring
1.2 Lithium battery parallel operation principle and configuration
1.2.1 Parallel Operation Core Prerequisites
Consistency Requirement: Same Model, Same Capacity
Mixing batteries of different capacities or new and old batteries is strictly prohibited. Doing so will create internal circulating current, accelerate battery aging, and trigger equipment protection.
Voltage Balance: Voltage Difference < 2V and allowed to stand for 15 minutes
The voltage of each individual cell must be measured before parallel operation. Excessive voltage difference will cause a sudden surge in current if parallel operation is initiated directly. Allow the circuit to stand after wiring to ensure balance.
Master-Slave Architecture: 1 Master, Multiple Slaves (Addresses 1-15)
Only one master (address 1) can be configured, with the rest as slaves (addresses 2-15). Duplicate addresses will cause communication interruption or system crash.
1.2.2 Standardized Wiring and Communication Logic
Power Cables: Direct parallel connection of positive and negative terminals.
All devices must be connected with their positive terminals connected to positive and negative terminals to negative, securely crimped with copper lugs. Series connection is strictly prohibited to avoid voltage superposition damage.
Communication Link: RS485 daisy-chain connection.
Use shielded twisted-pair cable, strictly adhering to the daisy-chain connection method. Both ends must be connected to 1200Ω terminating resistors for interference suppression.
Address Setting: Configured via physical DIP switches.
In the power-off state, a unique ID is set via DIP switches. The master device is fixed at address 1, and slave devices increment sequentially, without repetition.
1.3 Preliminary diagnosis of common faults in home energy storage lithium batteries
Temperature jumps/abnormal fluctuations
Possible Causes: Loose NTC sensor, poor contact, or probe detachment
Initial Troubleshooting Suggestions: Check the NTC connector for tightness and re-insert it firmly; if the probe is damaged, replace the sensor.
The voltage of a single battery cell is less than 0V
Possible Causes:This indicates that the corresponding cell sampling line is loose, detached, or has a poor solder joint.
Initial Troubleshooting Suggestions: Open the battery box and tighten the bolts on the corresponding sampling line to ensure good contact between the metal wire and the cell electrode.
Total voltage too low, equipment cannot start
Possible Causes: Cell pack over-discharged, total voltage below 44V protection threshold.
Initial Troubleshooting Suggestions: Use low current (0.1C rate) charging to activate; once total voltage rises above protection level, switch to normal charging.
No display or black screen
Possible Causes: The display cable connector is loose, oxidized, or the screen is damaged.
Initial Troubleshooting Suggestions: Turn off the power, reconnect the display cable, and clean the oxide layer on the connector with alcohol; if the screen is still black, replace the screen.
The protection board communicates normally but the device cannot be powered on
Possible Causes: This could be due to cell k-voltage protection triggering, or a faulty power button/switch.
Initial Troubleshooting Suggestions: Measure the total voltage to confirm the status, then press the RST button on the protection board to reset. If the button is malfunctioning, replace the switch assembly.
Excessive voltage difference between cells (>100mV)
Possible Causes: Long-term storage leading to differences in micro-discharge, or inconsistency in the performance of individual cells
Initial Troubleshooting Suggestions: Use a professional lithium battery equalizer to perform active cell balancing, or perform a complete full charge-discharge cycle calibration.
The system reports a "short circuit fault" alarm
Possible Causes: This indicates a genuine short circuit in the external load, or that the positive and negative terminals have been reversed, triggering hardware protection.
Initial Troubleshooting Suggestions: Immediately disconnect the power and remove the external load to check for the short circuit. If the positive and negative terminals are reversed, do not attempt to power on the device; it must be returned for repair.
The remaining capacity (SOC) is inaccurate
Possible Causes: The BMS’s SOC algorithm is not calibrated, or the battery has been in a shallow charge/discharge state for a long time.
Initial Troubleshooting Suggestions: Perform a complete charge/discharge cycle–fully charge the battery to the cutoff voltage, then discharge it to the protection voltage to complete capacity learning.
Installation and maintenance of lithium iron phosphate batteries
2.1 Preparations and precautions before installing a lithium battery system
2.1.1 Environmental operating conditions standards
Operating Temperature Range
Relative humidity requirement
Altitude Restriction
Site and Ventilation Environment
Protection Rating Standards
2.1.2 Safety operating red line (do not touch)
Mandatory professional qualifications required
Reversing the polarity is strictly prohibited
Strictly adhere to power-off procedures
Disassembly and physical damage are strictly prohibited
Voltage Calibration Before Parallel Connection of Multiple Batteries
2.2 Basic knowledge of lithium battery communication connection
| Pin number | Signal Definitions and Functional Descriptions |
|---|---|
| 1/8 pin | RS485-B: Negative terminal of differential signal, used for connecting the B line in RS485 bus communication. |
| 2/7 pin | RS485-A: Differential signal positive terminal, used for RS485 bus communication A-line connection. |
| 4 pin | CAN-H: CAN bus high-level signal, the core channel for transmitting control and status data. |
| 5 pin | CAN-L: Low-level signal on the CAN bus, used in conjunction with CAN-H to achieve differential transmission. |
| 3/6 pin | GND: Signal ground/common ground, ensuring the potential reference of the communication circuit. |
Please verify the definitions
Forced insertion and removal are strictly prohibited
Mainstream Protocol Compatibility
2.3 LiFePO4 Battery Routine Maintenance Knowledge
Daily inspection · Monthly
Key Inspection Items
• Visual Inspection: Confirm the casing is free from deformation, abnormal noises, or odors; the surface is clean and free from rust.
• Data Monitoring: Verify that all display parameters on the screen are normal and there are no red or yellow alarm codes.
• Electrical Safety: Check for loose, oxidized, or overheating wiring terminals; ensure connections are secure.
• Environmental Protection: Clean dust from heat dissipation areas to ensure completely unobstructed heat dissipation channels.
Long-Term Storage · Stagnation
Storage and Maintenance Guidelines
• Battery State of Charge (SOC): Adjust the battery’s SOC to the optimal range of 50%~70% before storage.
• Temperature and Humidity Control: Maintain an ambient temperature of -30℃~35℃ and ensure good ventilation and dryness.
• Regular Recharging: Check and recharge the battery every 3 months. Over-discharge is strictly prohibited.
• Deep Testing: If stored for more than 6 months, a capacity and performance retest is required.
Annual Maintenance · In-Depth Inspection
Deep Maintenance Items
• Mechanical Fastening: Retighten all bolts connecting cabinets, modules, and cables.
• Insulation Testing: Use professional instruments to test the system’s insulation resistance to ensure safety and compliance.
• Capacity Calibration: Perform cell capacity verification, and perform individual cell equalization if necessary.
• System Upgrade: Check and update the BMS software version, and optimize control strategies and functions.
2.4 Preliminary handling of common alarms
High Voltage Alarm (OV-Warn)
Typical Fault Symptoms: The device continues to operate even when the charge is nearly full.
Initial On-Site Troubleshooting and Handling: This is normal; the alarm will automatically disappear once fully charged. If the alarm sounds before the device is fully charged, check if the overcharge protection setting is too sensitive.
High Voltage Protection (OV-Prot)
Typical Fault Symptoms: Charging suddenly stops and cannot continue.
Initial On-Site Troubleshooting and Handling: Immediately stop charging and wait for the voltage to drop; check if the charging station output is normal, or if there is any abnormality in the battery.
Low Voltage Alarm (UV-Warn)
Typical Fault Symptoms: Discharge is about to end, indicating insufficient battery power.
Initial On-Site Troubleshooting and Handling: Replenishing the battery power in time will clear the alarm; avoid deep discharge, it is recommended to charge when the battery power is at 20%.
Low Voltage Protection (UV-Prot)
Typical Fault Symptoms: The device will shut down directly and cannot be restarted.
Initial On-Site Troubleshooting and Handling: The battery must be activated using the low-current slow charging mode; fast charging is strictly prohibited. If activation fails, the battery may be damaged.
High Temperature Alarm (OT-Warn)
Typical Fault Symptoms: Equipment temperature rise is too high, but the machine has not been shut down.
Initial On-Site Troubleshooting and Handling: Move to a cool, well-ventilated area and clean the heat dissipation points; reduce load power and suspend the use of high-energy-consuming equipment.
High Temperature Protection (OT-Prot)
Typical Fault Symptoms: Charging and discharging completely stop, equipment locked
Initial On-Site Troubleshooting and Handling: Immediately stop the machine for forced cooling and check if the cooling fan is faulty; restart only when the temperature drops below 45℃.
Overcurrent alarm (OC-Warn)
Typical Fault Symptoms: Output current is approaching the current limit value.
Initial On-Site Troubleshooting and Handling: Reduce the number of parallel loads to lower the total power; ensure the equipment operates within the rated current range.
Short Circuit Protection (SCP)
Typical Fault Symptoms: The equipment shuts down instantly, with no output.
Initial On-Site Troubleshooting and Handling: Disconnect all loads and check for damage to the output lines and whether the positive and negative terminals are short-circuited; confirm the circuit is safe before restarting.
Installation and maintenance of lithium iron phosphate batteries
2.1 Preparations and precautions before installing a lithium battery system
2.1.1 Environmental operating conditions standards
Operating Temperature Range
Relative humidity requirement
Altitude Restriction
Site and Ventilation Environment
Protection Rating Standards
2.1.2 Safety operating red line (do not touch)
Mandatory professional qualifications required
Reversing the polarity is strictly prohibited
Strictly adhere to power-off procedures
Disassembly and physical damage are strictly prohibited
Voltage Calibration Before Parallel Connection of Multiple Batteries
2.2 Basic knowledge of lithium battery communication connection
| Pin number | Signal Definitions and Functional Descriptions |
|---|---|
| 1/8 pin | RS485-B: Negative terminal of differential signal, used for connecting the B line in RS485 bus communication. |
| 2/7 pin | RS485-A: Differential signal positive terminal, used for RS485 bus communication A-line connection. |
| 4 pin | CAN-H: CAN bus high-level signal, the core channel for transmitting control and status data. |
| 5 pin | CAN-L: Low-level signal on the CAN bus, used in conjunction with CAN-H to achieve differential transmission. |
| 3/6 pin | GND: Signal ground/common ground, ensuring the potential reference of the communication circuit. |
Please verify the definitions
Forced insertion and removal are strictly prohibited
Mainstream Protocol Compatibility
2.3 LiFePO4 Battery Routine Maintenance Knowledge
Daily inspection · Monthly
Key Inspection Items
• Visual Inspection: Confirm the casing is free from deformation, abnormal noises, or odors; the surface is clean and free from rust.
• Data Monitoring: Verify that all display parameters on the screen are normal and there are no red or yellow alarm codes.
• Electrical Safety: Check for loose, oxidized, or overheating wiring terminals; ensure connections are secure.
• Environmental Protection: Clean dust from heat dissipation areas to ensure completely unobstructed heat dissipation channels.
Long-Term Storage · Stagnation
Storage and Maintenance Guidelines
• Battery State of Charge (SOC): Adjust the battery’s SOC to the optimal range of 50%~70% before storage.
• Temperature and Humidity Control: Maintain an ambient temperature of -30℃~35℃ and ensure good ventilation and dryness.
• Regular Recharging: Check and recharge the battery every 3 months. Over-discharge is strictly prohibited.
• Deep Testing: If stored for more than 6 months, a capacity and performance retest is required.
Annual Maintenance · In-Depth Inspection
Deep Maintenance Items
• Mechanical Fastening: Retighten all bolts connecting cabinets, modules, and cables.
• Insulation Testing: Use professional instruments to test the system’s insulation resistance to ensure safety and compliance.
• Capacity Calibration: Perform cell capacity verification, and perform individual cell equalization if necessary.
• System Upgrade: Check and update the BMS software version, and optimize control strategies and functions.
2.4 Preliminary handling of common alarms
High Voltage Alarm (OV-Warn)
Typical Fault Symptoms: The device continues to operate even when the charge is nearly full.
Initial On-Site Troubleshooting and Handling: This is normal; the alarm will automatically disappear once fully charged. If the alarm sounds before the device is fully charged, check if the overcharge protection setting is too sensitive.
High Voltage Protection (OV-Prot)
Typical Fault Symptoms: Charging suddenly stops and cannot continue.
Initial On-Site Troubleshooting and Handling: Immediately stop charging and wait for the voltage to drop; check if the charging station output is normal, or if there is any abnormality in the battery.
Low Voltage Alarm (UV-Warn)
Typical Fault Symptoms: Discharge is about to end, indicating insufficient battery power.
Initial On-Site Troubleshooting and Handling: Replenishing the battery power in time will clear the alarm; avoid deep discharge, it is recommended to charge when the battery power is at 20%.
Low Voltage Protection (UV-Prot)
Typical Fault Symptoms: The device will shut down directly and cannot be restarted.
Initial On-Site Troubleshooting and Handling: The battery must be activated using the low-current slow charging mode; fast charging is strictly prohibited. If activation fails, the battery may be damaged.
High Temperature Alarm (OT-Warn)
Typical Fault Symptoms: Equipment temperature rise is too high, but the machine has not been shut down.
Initial On-Site Troubleshooting and Handling: Move to a cool, well-ventilated area and clean the heat dissipation points; reduce load power and suspend the use of high-energy-consuming equipment.
High Temperature Protection (OT-Prot)
Typical Fault Symptoms: Charging and discharging completely stop, equipment locked
Initial On-Site Troubleshooting and Handling: Immediately stop the machine for forced cooling and check if the cooling fan is faulty; restart only when the temperature drops below 45℃.
Overcurrent alarm (OC-Warn)
Typical Fault Symptoms: Output current is approaching the current limit value.
Initial On-Site Troubleshooting and Handling: Reduce the number of parallel loads to lower the total power; ensure the equipment operates within the rated current range.
Short Circuit Protection (SCP)
Typical Fault Symptoms: The equipment shuts down instantly, with no output.
Initial On-Site Troubleshooting and Handling: Disconnect all loads and check for damage to the output lines and whether the positive and negative terminals are short-circuited; confirm the circuit is safe before restarting.
Still need help?
If you can’t find the information you need, our technical support team is ready to help you with product configuration, installation, troubleshooting, and energy storage system requirements.
