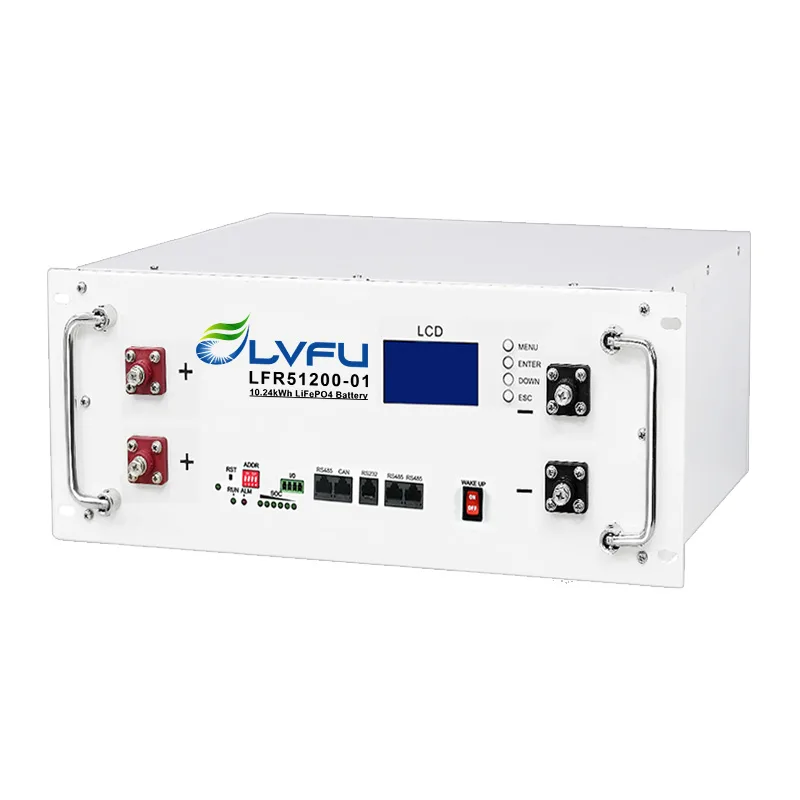

51.2V 200Ah Rack Mounted LiFePO4 battery

SKU: LFR51200-1

LVFU battery is made of Grade-A cells, lithium iron phosphate materials, built-in BMS, up to 16 units in parallel, with multiple certificates (UN38.3, CE, MSDS, etc.)
SKU:  LFW51200
Nominal Voltage: 51.2V
Nominal Capacity: 200Ah
Kilowatt-hour(s): 10.24kWh
Design Life: +15 Years at 80% DoD
Communications: CAN/RS485/RS232(WIFl,bluetooth is optional)

Key Features
  • Voltage Options: Available in 48V DC and 51.2V DC standard voltage.
  • Capacity Choices: Choose from 100Ah, 200Ah, and 280Ah options to meet your specific energy needs.
  • Energy Efficiency: Boasting an impressive 98% efficiency at 0.5C, our LiFePO4 battery ensures optimal energy utilization.
  • Communication Protocols: Versatile connectivity options include CAN, RS485, RS232, WIFI, 4G, and Bluetooth for advanced monitoring and control.
  • Long Cycle Life: With a cycle life of 6000 cycles at 80% Depth of Discharge (DoD), our battery guarantees a reliable and extended lifespan.
  • Robust Protection: Equipped with comprehensive protection mechanisms, including over-temperature, over-current, short circuit, over-charging, over-discharging, and low voltage safeguards.
  • Charge and Discharge Specifications: Tailor your energy usage with recommended and maximum charge/discharge currents and voltages.
  • Mechanical Excellence: Industrial-grade iron construction ensures durability, and the rack-mounted design allows for easy installation in a cabinet.

51.2V battery | 51.2V 200AH | 6,000 Cycles@ 80% DOD | Server Rack Battery | 5-Year Warranty

Features:

  • Voltage Options: Available in 48V DC and 51.2V DC standard voltage.
  • Capacity Choices: Choose from 100Ah, 200Ah, and 280Ah options to meet your specific energy needs.
  • Energy Efficiency: Boasting an impressive 98% efficiency at 0.5C, our LiFePO4 battery ensures optimal energy utilization.
  • Communication Protocols: Versatile connectivity options include CAN, RS485, RS232, WIFI, 4G, and Bluetooth for advanced monitoring and control.
  • Long Cycle Life: With a cycle life of 6000 cycles at 80% Depth of Discharge (DoD), our battery guarantees a reliable and extended lifespan.
  • Robust Protection: Equipped with comprehensive protection mechanisms, including over-temperature, over-current, short circuit, over-charging, over-discharging, and low voltage safeguards.
  • Charge and Discharge Specifications: Tailor your energy usage with recommended and maximum charge/discharge currents and voltages.
  • Mechanical Excellence: Industrial-grade iron construction ensures durability, and the rack-mounted design allows for easy installation in a cabinet.

Certifications and Compliance:

  • Certified with CE, FCC, and CCC standards, ensuring quality and safety.
  • Compliant with UN 38.3, UN 3480, Class 9 for safe shipping.

Temperature Specifications:

  • Wide operating temperature range from -20°C to 65°C for reliable performance in various environments.

Additional Information
Rack-mounted energy storage (Home/Industrial)

Model LFR-4850/5150 LFR-48100/51100 LFR-48150/51150 LFR-48200/51200
Standard Voltage 48VDc/51.2VDc
Voltage 39.75-54.75VDc/42.4-58.4VDc
Norminal Capacity 50Ah 100Ah 150Ah 200Ah
Rated Energy Capacity 2.4/2.56kWh 4.8/5.12kWh 7.2/7.68kWh 9.6/10.24kWh
Commumication Protocol CAN/RS485/RS232/WIFI/4G/Blue Tooth
Efficiency (at 0.5C) 98%
Cell Self-Discharge <5 %/ Month
Maximum Allowed Modules in Parallel 15 (36/38.4kWh) 15 (72/76.8kWh) 15 (108/115.2kWh) 15 (144/153.6kWh)
Depth of Discharge Up to 100%
Useful Life 8-10 Years
Cycle Life 6000 (@ 80% DoD)
Protection Over temperature, over current, short circuit, over-charging, over-discharging, Low voltage
Charge Specifications
Recommended Charge Current 25A 50A 75A 100A
Maximum Charge Current 50A 100A 100A 100A
Recommended Charge Voltage 54/57.6V 54/57.6V 54/57.6V 54/57.6V
Maximum Charge Voltage 54.75/58.4V 54.75/58.4V 54.75/58.4V 54.75/58.4V
Discharge Specifications
Recommended Discharge Current 25A 50A 75A 100A
Maximum Discharge Current 50A 100A 100A 100A
Recommended Low Voltage Disconnect 41.25/44V
Battery Low Voltage Protection 39.75/42.4V
Battery Recovery Voltage 45/48V
Mechanical Specifications
Dimenstions 484*410*120mm 484*410*178mm 484*590*178mm 484*590*178mm
Weight 24.5/26.5kg 38.5/41kg 59/63kg 70.5/75kg
Terminal Type M6
Case Material Industrial Grade Iron
Enclosure Protection IP20
Installation Cabinet
Cell Type Chemistry LiFePO4
Compliance Specifications
Certifications CE,FCC, CCC
Shipping Classification UN 38.3. UN 3480, Class 9
Temperature Specifications
Discharge Temperature -20~65℃ -20~65℃ -20~65℃ -20~65℃
Charge Temperature 0~55℃ 0~55℃ 0~55℃ 0~55℃
Storage Temperature -20~45℃ -20~45℃ -20~45℃ -20~45℃
